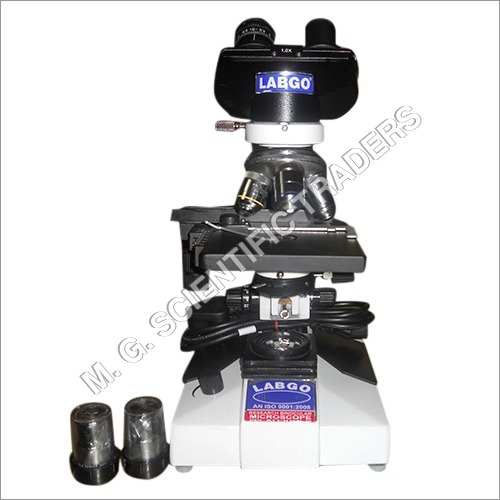

Binocular Coaxial Microscope

24500 INR/Unit

Get a Price/Quote

Product Details:

Spare Parts Eyepieces, objectives, stage clips, bulbs, fuse, power cord
Features Rugged construction, anti-fungal optics, clear and sharp images, ergonomic design
Material Stainless Steel
View Head Binocular, inclined at 45 and rotatable
Product Type Microscope
Usage For Laboratory Use
Focus System Coaxial coarse & fine focusing system
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Binocular Coaxial Microscope Price And Quantity

Minimum Order Quantity 1 Unit
Price 24500 INR/Unit

Binocular Coaxial Microscope Product Specifications

Focus Range Coarse and Fine adjustment, full range to accommodate slide height
Magnification 40x - 1000x (Standard Configuration)
Dimensions Approx. 350 mm x 250 mm x 400 mm
Coarse Adjustment Range Approx. 25mm
Working Stage Mechanical stage with slide holder, x-y movement
Sensor Not Applicable (Optical device)
Color White & Black
Condenser Abbe condenser (N.A 1.25) with iris diaphragm and filter holder
Focus System Coaxial coarse & fine focusing system
Product Type Microscope
Illumination Built-in LED or Halogen light with adjustable intensity
Interface Manual, No digital interface
Usage For Laboratory Use
Focal Distance Approximately 45mm (standard close working distance)
Light Source LED/halogen, 220V/50Hz
Resolution Dependent on eyepieces and objectives, typically up to 2000x effective resolution
Interpupillary Distance 55-75mm adjustable
Theory Binocular Coaxial Microscope is designed for high-precision laboratory applications, offering optimal viewing with synchronized focusing.
Eyepieces WF10x paired
Objective Achromatic 4x, 10x, 40x (spring), 100x oil immersion (spring)
View Head Binocular, inclined at 45 and rotatable
Material Stainless Steel
Features Rugged construction, anti-fungal optics, clear and sharp images, ergonomic design
Fine Adjustment Range 0.002 mm precision
Spare Parts Eyepieces, objectives, stage clips, bulbs, fuse, power cord
Drawtube Binocular
Image Format Visual observation (no camera by default)
Eyepiece Tube Inclined 45 degrees, rotatable 360 degrees

Binocular Coaxial Microscope Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID)
Supply Ability 1 Unit Per Day
Delivery Time 2-3 Days
Main Export Market(s) Western Europe, Asia, Australia, North America, Eastern Europe, Central America, Middle East, South America, Africa
Main Domestic Market All India

Product Description

To meet the exacting standards of the industry, we are engaged in manufacturing and supplying an exclusive range of Binocular Coaxial Microscope. Fitted with large size prisms for superb clarity & contrast, this microscope is recommended for routine as well as research work. Our highly experienced personnel team designs this microscope, using high quality materials and components. We check the Binocular Coaxial Microscope on performance and efficiency parameters before offering at reasonable prices.

Features:

Co-axial focusing system
Trouble-free performance
Longer service life

Optimal Laboratory Imaging

This microscope is tailored for precision in laboratory settings, allowing researchers and students to achieve high-resolution images. The binocular co-axial system and ergonomic design reduce eye strain during prolonged observation, supported by fine and coarse focusing for detailed slide study. An efficient LED/halogen light source provides consistent illumination.

Rugged & Ergonomic Construction

Built with robust stainless steel and featuring anti-fungal coated optics, the microscope withstands laboratory environments and frequent handling. Its rotatable, inclined binocular head and adjustable interpupillary distance add significant ergonomic comfort during extended periods of use.

Versatile Application & Easy Maintenance

Engineered for Indian laboratories, this microscope is suitable for routine analysis, teaching, and research thanks to its mechanical stage, comprehensive magnification (40x-1000x), and spare part availability. The included dust cover and user-friendly manual focusing ensure longevity with simple maintenance steps.

FAQ's of Binocular Coaxial Microscope:

Q: How do you adjust the focus on the Binocular Coaxial Microscope?

A: This microscope is equipped with a coaxial coarse and fine focusing system. Use the coarse adjustment knob for rapid focusing to find the specimen, then switch to the fine adjustment knob for precise sharpening. The full focus range accommodates varying slide heights for optimal viewing.

Q: What is the magnification range provided by the standard configuration?

A: The standard configuration offers a magnification range of 40x to 1000x. This is achieved using paired WF10x eyepieces and objective lenses of 4x, 10x, 40x (spring), and 100x oil immersion (spring), enabling detailed visual analysis.

Q: When should the LED or halogen illumination be used?

A: Adjust the built-in LED or halogen light according to your sample's transparency and contrast requirements. Use brighter settings for denser specimens and reduce intensity for sensitive slides to prevent glare and achieve optimal image quality.

Q: Where can this microscope be effectively utilized?

A: This microscope is best suited for laboratories in educational institutions, research centers, and healthcare diagnostic facilities. Its robust and ergonomic build makes it suitable for both routine and advanced laboratory applications in India.

Q: What is the process for cleaning and maintaining the optical components?

A: To maintain optical performance, always use a clean brush or air blower for dust removal, and gently wipe lenses with lens paper and a suitable cleaning solution. The anti-fungal coating and included dust cover further protect optics between uses. Regular cleaning prolongs instrument life.

Q: How does the anti-fungal coating benefit laboratory users?

A: The anti-fungal coating prevents fungal growth on the lenses and optical components, ensuring sustained clarity and reducing the need for frequent maintenance. This feature is particularly valuable in humid environments, supporting consistent, reliable performance.

Q: What are the advantages of the mechanical stage and stage movement range?

A: The 140mm x 140mm mechanical stage with a 75mm x 50mm X-Y movement allows precise positioning and smooth navigation of slides during observation. This precision control is essential for examining specific regions and conducting systematic studies.
